Chapter 3: A Basic NMR Analysis#
In this example, we load an NMR data set and demonstrate how to go about fitting it. For this, we need a text file with the measured relaxation rates and experimental data in it (e.g. HETs_15N.txt). This is provided for this example, but one can also use one’s own data. Make sure to follow the prescribed file format. Entries are separated by tabs within a given line and by carriage returns over multiple lines. An example data file is printed out as an example.
# SETUP pyDR
import os
os.chdir('../..')
#Imports
import pyDR
Loading NMR data#
First, we load a data object and discuss some of its contents, including plotting the experimental data. The contents of the data text file are shown below (entries are truncated for convenient viewing).
# Load the data
data=pyDR.IO.readNMR('pyDR/examples/HETs15N/HETs_15N.txt')
First, we discuss the data object briefly to understand the contents of the data object. There are a few key components:
Relaxation rate constants: data.R
Standard deviation of the relaxation rate constants: data.Rstd
Order parameters, given as \(S^2\) (these are optional): data.S2
Standard deviation of \(S^2\): data.S2std
Labels for the data: data.label
Sensitivity of the data: data.sens
Detector object for processing the data: data.detect
Experimental parameters: data.info
This is a reference to data.sens.info
Details on the data / processing so far: data.details
Selection object, which connects data to a pdb of the molecular structure: data.select
Not required: we’ll connect the data to a pdb later
A number of other functions and data objects are also attached to data, but these are for data processing, or analysis of the processing after an initial fit.
Below, you can investigate these different components. We show data.info, which provides the various relevant experimental parameters for determining the sensitivities of the 8 experiments. Note that this data set also includes \(S^2\), which is treated separately and does not show up in data.info.
data.info
0 1 2 3 4 5 6 7
Type R1 R1 R1 R1p R1p R1p R1p R1p
v0 400 500 850 850 850 850 500 500
v1 0.0 0.0 0.0 10.8 16.1 24.5 37.6 50.8
vr 0 0 0 60 60 60 60 60
offset 0 0 0 0 0 0 0 0
stdev 0.00249149 0.00554449 0.00208680 1.08759999 0.65464997 0.68395000 0.56901997 1.18330001
med_val 0.04465600 0.03731900 0.02731099 3.81399989 3.52609992 3.61940002 3.92989993 5.97370004
Nuc 15N 15N 15N 15N 15N 15N 15N 15N
Nuc1 1H 1H 1H 1H 1H 1H 1H 1H
dXY -22954.8 -22954.8 -22954.8 -22954.8 -22954.8 -22954.8 -22954.8 -22954.8
CSA 113.0 113.0 113.0 113.0 113.0 113.0 113.0 113.0
eta 0 0 0 0 0 0 0 0
CSoff 0 0 0 0 0 0 0 0
QC 0 0 0 0 0 0 0 0
etaQ 0 0 0 0 0 0 0 0
theta 23.0 23.0 23.0 23.0 23.0 23.0 23.0 23.0
[8 experiments with 16 parameters]
These are the parameters found by default in data.info. Not all parameters are required for all experiments. If unspecified, these go to some default value (usually 0 or None).
v0: External magnetic field, given as the \(^1\)H frequency in MHz
v1: Spin-locking strength for \(R_{1\rho}\) experiments (applied to the relaxing nucleus), given in kHz
vr: Magic angle spinning frequency, given in kHz
offset: Offset applied to the spin-lock, given in kHz
stdev: Median standard deviation for data set
med_val: Median relaxation rate constant for data set
Nuc: Nucleus being relaxed (atomic number, symbol)
Nuc1: Nucleus (or list of nuclei) relaxing Nuc via dipole coupling
dXY: Dipole coupling (or list of couplings), given in Hz Same length as Nuc1
Given as the full anisotropy of the dipole coupling, which is twice the coupling constant
CSA: Chemical shift anisotropy of nucleus being relaxed (z-component in ppm)
eta: Asymmetry of the CSA, which is unitless
CSoff: Unimplemented
QC: Quadrupole coupling in Hz
etaQ: Asymmetry of the quadrupole coupling
theta: Angle between the CSA and dipole tensors (for cross-correlated cross-relaxation)

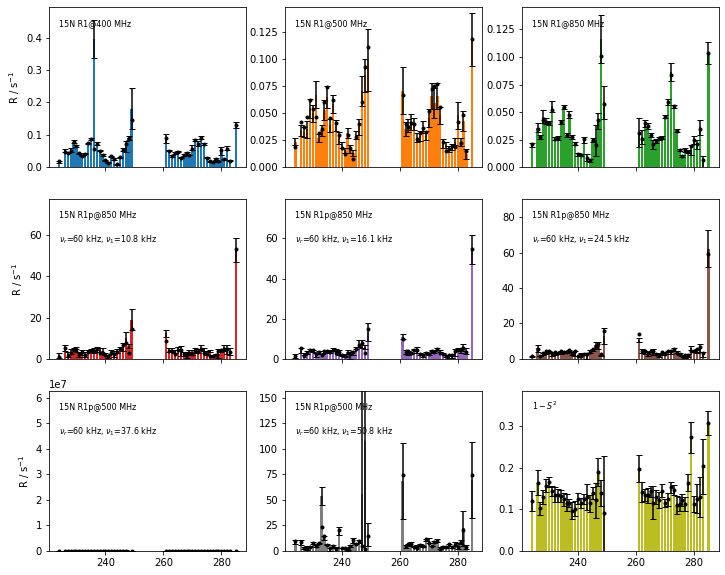

A graphical summary of the data object is obtained via data.plot (can use various plotting options, such as plot type, etc.). The plt_obj provides a variety of functions for manipulating the plot.
plt_obj=data.plot(style='bar')
plt_obj.fig.set_size_inches([8,10])
Processing NMR experimental data#
Now, we want to process this data set. To do so, we first must optimize a set of detectors to analyze it with. The detector object is already attached to the data object, found in data.detect. So, we just need to run the optimization algorithm. We also will include \(S^2\) in the data analysis, which we must also specify. We will use 4 detectors plus one more for \(S^2\) data, to yield 5 total. Once the detector analysis is run, we may simply run the “fit” function to obtain the detector analysis, and finally plot the results.
data.detect.r_auto(4).inclS2() #Optimize the detectors
fit=data.fit() #Fit the data
plt_obj=fit.plot(style='bar')
plt_obj.fig.set_size_inches([8,10])
plt_obj.show_tc()
_=plt_obj.ax[-1].set_xlabel('Residue')
Finally, we can check the fit quality by comparing the back-calculated relaxation rate constants to the original experimental relaxation rate constants. The original data is shown as bar plots with error bars and the fitted rate constants are scatter points (filled circles).
fig=fit.plot_fit()[0].axes.figure
fig.set_size_inches([12,10])
Connecting data to locations in a structure, 3D visualization#
It is often useful to see how relaxation parameters relate to the structure. Also, for sake of comparison of dynamics between methods, one may assign a common set of labels, but alternatively, one may associate dynamics via the structure. We attach a structure to the data via the selection objection. The selection is a list of atom groups (from the MDAnalysis Python module), with the same number of entries as the number of data points in the data object (len(data)).
We will also include a ‘Project’ here. Projects add a lot of convient functionality; here they provide us with convenient communcation with ChimeraX.
proj=pyDR.Project() #Project without storage location
proj.append_data(data) #Add data to project
data.select=pyDR.MolSelect(topo='2kj3') #Add selection to data
#Note: you can use a local file, or download from the pdb database with 4-letter code
# data.label contains the residue numbers, so we can just point to these.
#The pdb contains 3 copies of HET-s (segments A,B,C), so we have to select just one segment
_=data.select.select_bond(Nuc='N',resids=data.label,segids='B') #Define the selection
fit=data.fit() #Selections are automatically passed from data to fit
#but, we do need to re-run the fit to achieve this
Detector analysis can be viewed directly on the molecule, with detector responses represented as color intensity and atom radius. This works externally from Jupyter notebooks via ChimeraX (must be separately installed, and the path provided to pyDR, see below), or within the Jupyter notebook, via NGLviewer (must be installed in Python with pip or conda).
Visualization via ChimeraX#
#Set chimera path (only required once)
pyDR.chimeraX.chimeraX_funs.set_chimera_path('/Applications/ChimeraX-1.5.app/Contents/MacOS/ChimeraX')
fit.chimera()
proj.chimera.command_line('~show ~/B@N,C,CA') #Send command to chimera
---------------------------------------------------------------------------
AssertionError Traceback (most recent call last)
<ipython-input-9-189842587d6b> in <module>
1 #Set chimera path (only required once)
----> 2 pyDR.chimeraX.chimeraX_funs.set_chimera_path('/Applications/ChimeraX-1.5.app/Contents/MacOS/ChimeraX')
3
4 fit.chimera()
5 proj.chimera.command_line('~show ~/B@N,C,CA') #Send command to chimera
~/Documents/GitHub.nosync/pyDR/chimeraX/chimeraX_funs.py in set_chimera_path(path)
48 once)
49 """
---> 50 assert os.path.exists(path),"No file found at '{0}'".format(path)
51
52 with open(os.path.join(get_path(),'ChimeraX_program_path.txt'),'w') as f:
AssertionError: No file found at '/Applications/ChimeraX-1.5.app/Contents/MacOS/ChimeraX'
You can mouse over the different detector names in ChimeraX (\(\rho_0\),\(\rho_1\),etc.), to view the different detector responses. However, the size of the responses are on different scales, so only \(\rho_0\) is visible on the default scale (often a problem with rigid proteins). Run the cells below to view the different responses by excluding some of the detectors via rho_index.
proj.chimera.close()
fit.chimera(rho_index=[1,2])
proj.chimera.command_line('~show ~/B@N,C,CA')
proj.chimera.close()
fit.chimera(rho_index=[3,4],scaling=200)
proj.chimera.command_line('~show ~/B@N,C,CA')
Visualization with NGL Viewer#
fit.nglview(det_num) #Runs NGLviewer for Jupyter notebooks (coloring may fail in Google Colab)
